For Chrysler Jeep Dodge Fiat ESL Electronic Steering Lock Emulator

Stock Code	M4-1310
Barcode	8684990060101
EAN	8684990060101
Categories	M4Key Emulators
Brands	M4Key Products
Tags	For Chrysler Jeep Dodge Fiat ESL Electronic Steering Lock Emulator

Stock Code

M4-1310

Barcode

8684990060101

EAN

8684990060101

Product Features

Manufacturer	Condition	Weight
M4KEY	New	25 g

For Chrysler | Jeep | Dodge | Fiat | 05026132AC / 5026464AA / 5057278AC steering column lock emulator / simulator

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator Overview:

ELV is a self-occurring mechanical failure in the steering column lock.
The occurrence of this failure is not caused by any fault.
In case of malfunction, even if there is no problem in the vehicle key, ordinarily functioning key will not start the vehicle because the ELV steering column lock will not be activated.
In this case, a new ELV steering column lock must be installed in the vehicle and programmed into the vehicle.
Steering lock problem is one among the foremost frequent problems in Chrysler Jeep Dodge starting system.
Chrysler Jeep Dodge dealer needs to order a new steering lock and program it which is just too costly and time-consuming.
Instead, use our Electronic Steering Lock Chrysler Jeep Dodge Emulator which will fix your steering lock malfunction error.
The Chrysler Jeep Dodge ESL ELV Universal Steering Lock Emulator will always bypass Chrysler Jeep Dodge ELV.
No coding required, simply connect it. It’ll fix your Chrysler Jeep Dodge ESL fail.

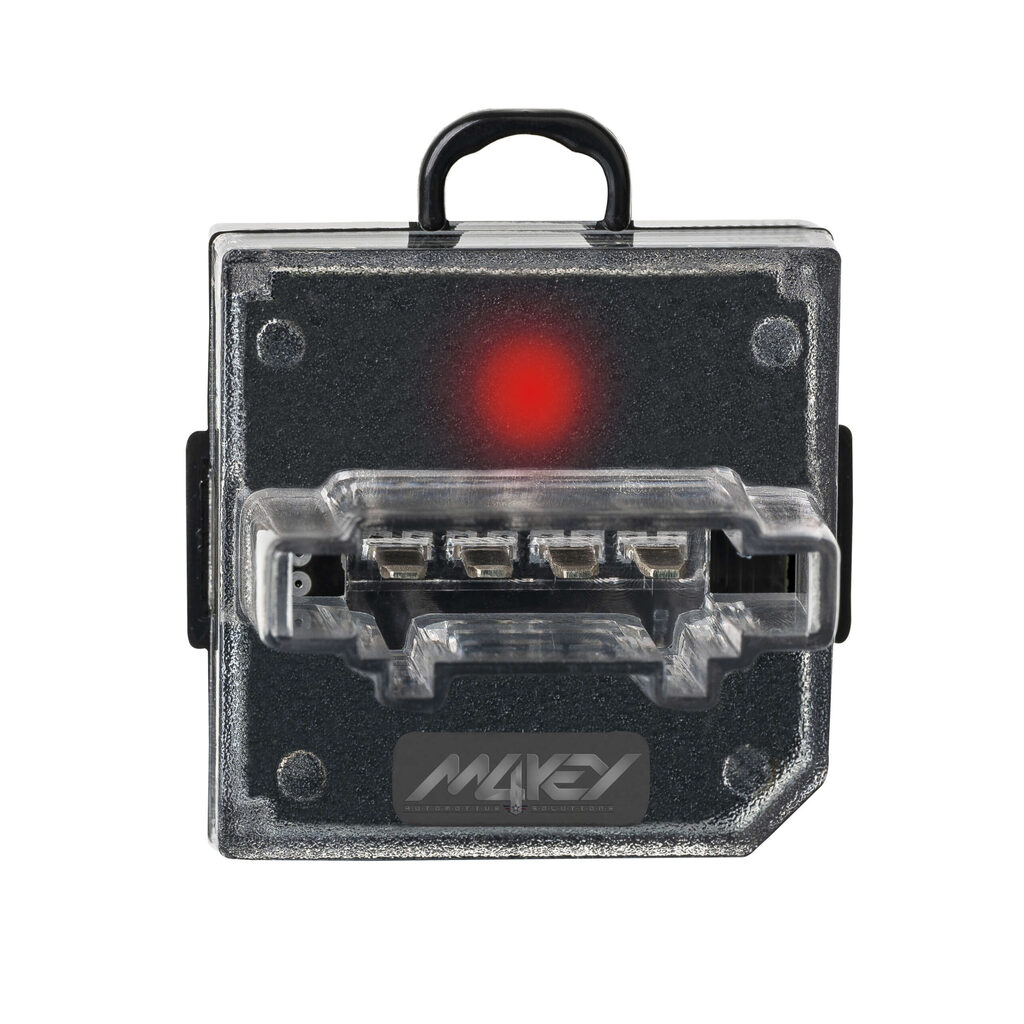

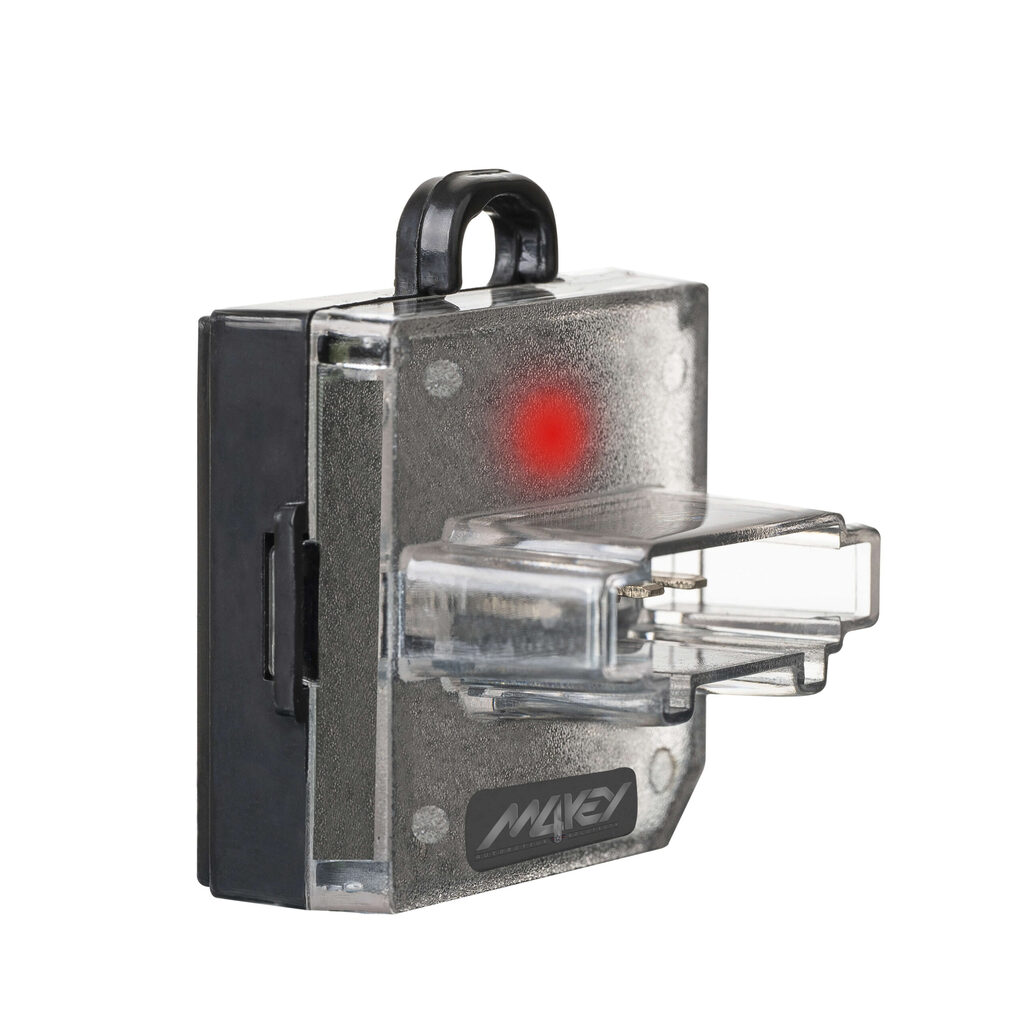

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator LED Behavior:

After connecting it to the car, or to the testing cables, insert the car key to the switch.
If emulator light turns “green” that means it’s connected successfully and the car is ready to go.
If emulator light turns “red” that means either the key doesn’t belong to an equivalent EIS / EZS or you have EIS problem
If emulator light didn’t turn on at all, you might want to check the facility that is the supplier of the car / cables

Steering Lock Emulator Pinout:

Pin1: +12v
Pin2: GND
Pin3: not used
Pin4: LIN line

Steering Lock Emulator Installation:

First, unplug the ELV wire from the car steering lock unit.
If vehicle steering lock is in “lock” mode, steering lock must be away from the car.
Connect our M4KEY ELV emulator to the car and start the car.

Fitments:

Chrysler
Fiat Freemont
Jeep Cherokee Ram
Dodge

Compatible Part Number

05026132AC
5026464AA
5057278AC

Product Description

Manufacturer	Condition	Weight
M4KEY	New	25 g

For Chrysler | Jeep | Dodge | Fiat | 05026132AC / 5026464AA / 5057278AC steering column lock emulator / simulator

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator Overview:

ELV is a self-occurring mechanical failure in the steering column lock.
The occurrence of this failure is not caused by any fault.
In case of malfunction, even if there is no problem in the vehicle key, ordinarily functioning key will not start the vehicle because the ELV steering column lock will not be activated.
In this case, a new ELV steering column lock must be installed in the vehicle and programmed into the vehicle.
Steering lock problem is one among the foremost frequent problems in Chrysler Jeep Dodge starting system.
Chrysler Jeep Dodge dealer needs to order a new steering lock and program it which is just too costly and time-consuming.
Instead, use our Electronic Steering Lock Chrysler Jeep Dodge Emulator which will fix your steering lock malfunction error.
The Chrysler Jeep Dodge ESL ELV Universal Steering Lock Emulator will always bypass Chrysler Jeep Dodge ELV.
No coding required, simply connect it. It’ll fix your Chrysler Jeep Dodge ESL fail.

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator LED Behavior:

After connecting it to the car, or to the testing cables, insert the car key to the switch.
If emulator light turns “green” that means it’s connected successfully and the car is ready to go.
If emulator light turns “red” that means either the key doesn’t belong to an equivalent EIS / EZS or you have EIS problem
If emulator light didn’t turn on at all, you might want to check the facility that is the supplier of the car / cables

Steering Lock Emulator Pinout:

Pin1: +12v
Pin2: GND
Pin3: not used
Pin4: LIN line

Steering Lock Emulator Installation:

First, unplug the ELV wire from the car steering lock unit.
If vehicle steering lock is in “lock” mode, steering lock must be away from the car.
Connect our M4KEY ELV emulator to the car and start the car.

Fitments:

Chrysler
Fiat Freemont
Jeep Cherokee Ram
Dodge

Compatible Part Number

05026132AC
5026464AA
5057278AC
